#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <string.h>
#include <time.h>
#include "sundials_types.h"
#include "sundials_dense.h"
#include "sundials_smalldense.h"
#include "sundials_math.h"
#include "cvode.h"
#include "cvode_spgmr.h"
#include "cvode_dense.h"
#include "nvector_serial.h"
#include "pihm.h"
Include dependency graph for pihm.c:
Go to the source code of this file.
Functions | |
| void | read_alloc (char *, Model_Data, Control_Data *) |
| Function reads all the input files and initializes members of Model and Control Data Structure. | |
| N_Vector | N_VNew_Serial (int) |
| CVODE::Set vector of initial values. | |
| void | initialize (char *, Model_Data, Control_Data *, N_Vector) |
| Function initializes several dependent variables of Model and Control Data Structure. | |
| void * | CVodeCreate (int, int) |
| CVODE::Create the CVODE memory block and specify the Solution Method. | |
| int | CVodeSetFdata (void *, void *) |
| CVODE::Set Data for right-hand side function. | |
| int | CVodeSetInitStep (void *, realtype) |
| CVODE::Set Initial step size. | |
| int | CVodeSetStabLimDet (void *, booleantype) |
| CVODE::ON/OFF the BDF stability limit detection algorithm. | |
| int | CVodeSetMaxStep (void *, realtype) |
| CVODE::Specify the maximum absolute value of the step size. | |
| int | CVodeMalloc (void *, CVRhsFn, realtype, N_Vector, int, realtype, void *) |
| CVODE::provide required problem specifications, allocate internal memory for CVODE, and initialize CVODE. | |
| int | CVSpgmr (void *, int, int) |
| CVODE::selects the CVSPGMR linear solver. | |
| int | CVSpilsSetGSType (void *, int) |
| CVODE::specifies Gram-Schmidt orthogonalization to be used. | |
| void | calET_IS (realtype, realtype, Model_Data, N_Vector) |
| Function Calculates Evaporation from Canopy & Interception Storage. | |
| int | CVode (void *, realtype, n_Vector, realtype *, int) |
| CVODE::Advance solution in time. | |
| int | f (realtype, N_Vector, N_Vector, void *) |
| Function calculates fluxes, right hand side leading to construction of ODE system. | |
| void | setTSDiCounter (Model_Data mData, realtype t) |
| Function sets the marker of all the time series according to given time t. | |
| realtype | Interpolation (TSD *Data, realtype t) |
| void | FPrintInit (Model_Data) |
| Initializes several variables and allocates memory depending on output file mode and variables user wants to output. | |
| void | FPrint (Model_Data, N_Vector, realtype) |
| This function calls different fuction depending on the Output File Mode and simulated variables user wants to print as declared in print.h file. | |
| void | FPrintInitFile (Model_Data, Control_Data, N_Vector, int) |
| Print new .init file at the completion of simulation. | |
| void | FPrintCloseAll (void) |
| Close all the files those were opened in function FPrintInit. | |
| int | main (int argc, char *argv[]) |
Variables | |
| int | satEle |
| int | ovrEle |
The whole PIHM module consists of 11 files including Makefile. The strategy followed here revolves around the basic setup for using CVODE Solver. In terms of procedural framework the steps those are accomplished are as follows:
1. read_alloc.c reads all the input files
2. initialize.c initializes the model and control data structure variables.
3. et_is.c computes interception and evaporation from the canopy
4. CVode() solves the system of ODE to output state variables at specified point of times
5. f.c computes the rate of change to state variables to form system of ODEs
6. state variables are passed on to print.c at the end of each timestep
This process (steps 3 to 6) of marching in time continues until it reaches the end of simulation time period.
Definition in file pihm.c.
| void calET_IS | ( | realtype | t, | |
| realtype | stepsize, | |||
| Model_Data | MD, | |||
| N_Vector | VY | |||
| ) |
Function Calculates Evaporation from Canopy & Interception Storage.
| t | is the time of simulation | |
| stepsize | is length of time marching | |
| MD | is pointer to model data structure | |
| VY | is state variable vector |
Bhatt
Definition at line 62 of file et_is.c.
References element_type::Albedo, model_data_structure::Ele, model_data_structure::Ele2IS, model_data_structure::EleET, model_data_structure::EleIS, model_data_structure::EleISmax, model_data_structure::EleNetPrep, model_data_structure::ElePrep, model_data_structure::EleSnow, model_data_structure::EleTF, et0_CALIB, element_type::humidity, Interpolation(), is_CALIB, element_type::LAImax, element_type::LC, mf_CALIB, model_data_structure::NumEle, element_type::prep, element_type::pressure, element_type::Rn, setet0_CALIB(), setis_CALIB(), setmf_CALIB(), settf_CALIB(), model_data_structure::SIFactor, element_type::temp, tf_CALIB, model_data_structure::TSD_DH, model_data_structure::TSD_Humidity, model_data_structure::TSD_LAI, model_data_structure::TSD_MeltF, model_data_structure::TSD_Prep, model_data_structure::TSD_Pressure, model_data_structure::TSD_Rn, model_data_structure::TSD_Temp, model_data_structure::TSD_WindVel, element_type::VegFrac, element_type::windH, element_type::WindVel, and element_type::zmax.
Referenced by main().
Here is the call graph for this function:
| int CVode | ( | void * | , | |
| realtype | , | |||
| n_Vector | , | |||
| realtype * | , | |||
| int | ||||
| ) |
| void* CVodeCreate | ( | int | , | |
| int | ||||
| ) |
| int CVodeMalloc | ( | void * | , | |
| CVRhsFn | , | |||
| realtype | , | |||
| N_Vector | , | |||
| int | , | |||
| realtype | , | |||
| void * | ||||
| ) |
CVODE::provide required problem specifications, allocate internal memory for CVODE, and initialize CVODE.
Referenced by main().
| int CVodeSetFdata | ( | void * | , | |
| void * | ||||
| ) |
| int CVodeSetInitStep | ( | void * | , | |
| realtype | ||||
| ) |
| int CVodeSetMaxStep | ( | void * | , | |
| realtype | ||||
| ) |
| int CVodeSetStabLimDet | ( | void * | , | |
| booleantype | ||||
| ) |
| int CVSpgmr | ( | void * | , | |
| int | , | |||
| int | ||||
| ) |
| int CVSpilsSetGSType | ( | void * | , | |
| int | ||||
| ) |
| int f | ( | realtype | t, | |
| N_Vector | CV_Y, | |||
| N_Vector | CV_Ydot, | |||
| void * | DS | |||
| ) |
Function calculates fluxes, right hand side leading to construction of ODE system.
| t | is the time of simulation | |
| CV_Y | is state variable vector | |
| CV_Ydot | is vector of rate of change of state variables | |
| DS | is pointer to model data structure |
Definition at line 83 of file f.c.
References ABS_TOL, model_data_structure::Ele, et1_CALIB, et2_CALIB, Kh_CALIB, mp_MULTFH, mp_MULTFV, mpArea_CALIB, model_data_structure::NumEle, model_data_structure::NumRiv, ovl_THRESH_H, ovl_THRESH_V, Rec_CALIB, rivK_CALIB, rzd_CALIB, sat_THRESH, setet1_CALIB(), setet2_CALIB(), setKh_CALIB(), setmp_MULTFH(), setmp_MULTFV(), setmpArea_CALIB(), setovl_THRESH_H(), setovl_THRESH_V(), setRec_CALIB(), setrivK_CALIB(), setrzd_CALIB(), setsat_THRESH(), setVic_CALIB(), Vic_CALIB, element_type::zmax, and element_type::zmin.
Referenced by main().

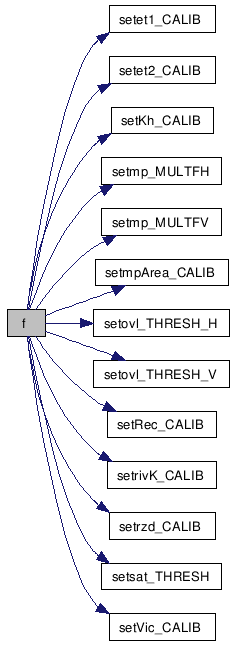

Here is the call graph for this function:
| void FPrint | ( | Model_Data | mData, | |
| N_Vector | CV_Y, | |||
| realtype | t | |||
| ) |
This function calls different fuction depending on the Output File Mode and simulated variables user wants to print as declared in print.h file.
| mData | is pointer to model data structure | |
| CV_Y | is state variable vector | |
| t | is time of current simulation |
Definition at line 101 of file print.c.
References CDF, ET0, et0_varid, et0ID, et0Ptr, ET1, et1_varid, et1ID, et1Ptr, ET2, et2_varid, et2ID, et2Ptr, FPRINT_MODE, Infil, infil_varid, infilID, infilPtr, ISState, isState_varid, isStateID, isStatePtr, NetPpt, netPrecip_varid, netPrecipID, netPrecipPtr, printET0(), printET0cdf(), printET1(), printET1cdf(), printET2(), printET2cdf(), printInfil(), printInfilcdf(), printIS(), printIScdf(), printNetPpt(), printNetPptcdf(), printRecharge(), printRechargecdf(), printRiverBase(), printRiverBasecdf(), printRiverFlow(), printRiverFlowcdf(), printRiverHead(), printRiverHeadcdf(), printRiverSurf(), printRiverSurfcdf(), printSatState(), printSatStatecdf(), printSurfState(), printSurfStatecdf(), printUsatState(), printUsatStatecdf(), RECHARGE, recharge_varid, rechargeID, rechargePtr, RivBase, rivBase_varid, rivBaseID, rivBasePtr, RivFlow, rivFlow_varid, rivFlowID, rivFlowPtr, RivHead, rivHead_varid, rivHeadID, rivHeadPtr, RivSurf, rivSurf_varid, rivSurfID, rivSurfPtr, SatState, satState_varid, satStateID, satStatePtr, SurfState, surfState_varid, surfStateID, surfStatePtr, TXT, UsatState, usatState_varid, usatStateID, usatStatePtr, and YEA.
Referenced by main().

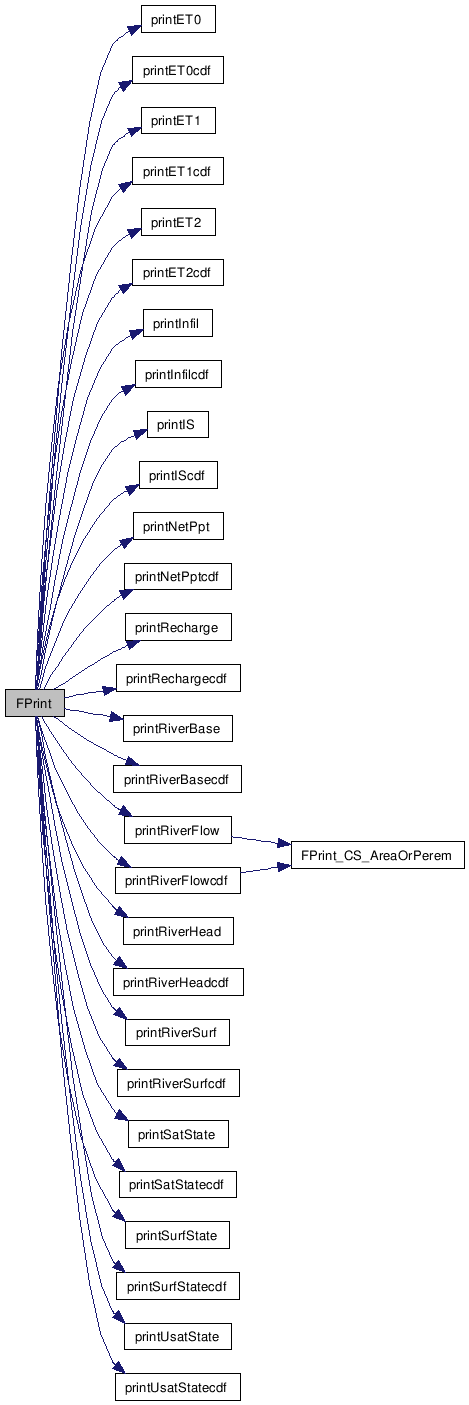

Here is the call graph for this function:
| void FPrintCloseAll | ( | void | ) |
| void FPrintInit | ( | Model_Data | mData | ) |
| void FPrintInitFile | ( | Model_Data | mData, | |
| Control_Data | cData, | |||
| N_Vector | CV_Y, | |||
| int | i | |||
| ) |
Print new .init file at the completion of simulation.
| mData | is pointer to model data structure | |
| cData | is pointer to control data structure | |
| CV_Y | is state variable vector | |
| i | is the index of cData.Tout |
Definition at line 215 of file print.c.
References model_data_structure::EleIS, model_data_structure::EleSnow, initFile, initPtr, model_data_structure::NumEle, model_data_structure::NumRiv, setFileName(), and control_data_structure::Tout.
Here is the call graph for this function:
| void initialize | ( | char * | filename, | |
| Model_Data | DS, | |||
| Control_Data * | CS, | |||
| N_Vector | CV_Y | |||
| ) |
Function initializes several dependent variables of Model and Control Data Structure.
| filename | is Identifier of input files | |
| DS | is pointer to model data structure | |
| CS | is pointer to control data structure | |
| CV_Y | is state variable vector |
Definition at line 49 of file initialize.c.
References br_CALIB, model_data_structure::Ele, icsat_CALIB, element_type::node, model_data_structure::Node, model_data_structure::NumEle, poros_CALIB, rivEle_CALIB, satD_CALIB, setbr_CALIB(), seticsat_CALIB(), setporos_CALIB(), setrivEle_CALIB(), setsatD_CALIB(), nodes_type::x, nodes_type::y, nodes_type::zmax, and nodes_type::zmin.
Referenced by main().
Here is the call graph for this function:
| realtype Interpolation | ( | TSD * | Data, | |
| realtype | t | |||
| ) |
| int main | ( | int | argc, | |
| char * | argv[] | |||
| ) |
Definition at line 127 of file pihm.c.
References control_data_structure::abstol, calET_IS(), CVode(), CVodeCreate(), CVodeMalloc(), CVodeSetFdata(), CVodeSetInitStep(), CVodeSetMaxStep(), CVodeSetStabLimDet(), CVSpgmr(), CVSpilsSetGSType(), control_data_structure::ETStep, f(), FPrint(), FPrintInit(), initialize(), control_data_structure::InitStep, Interpolation(), control_data_structure::MaxStep, N_VNew_Serial(), control_data_structure::NumSteps, read_alloc(), control_data_structure::reltol, setFileName(), setTSDiCounter(), control_data_structure::StartTime, control_data_structure::Tout, and Tsteps.

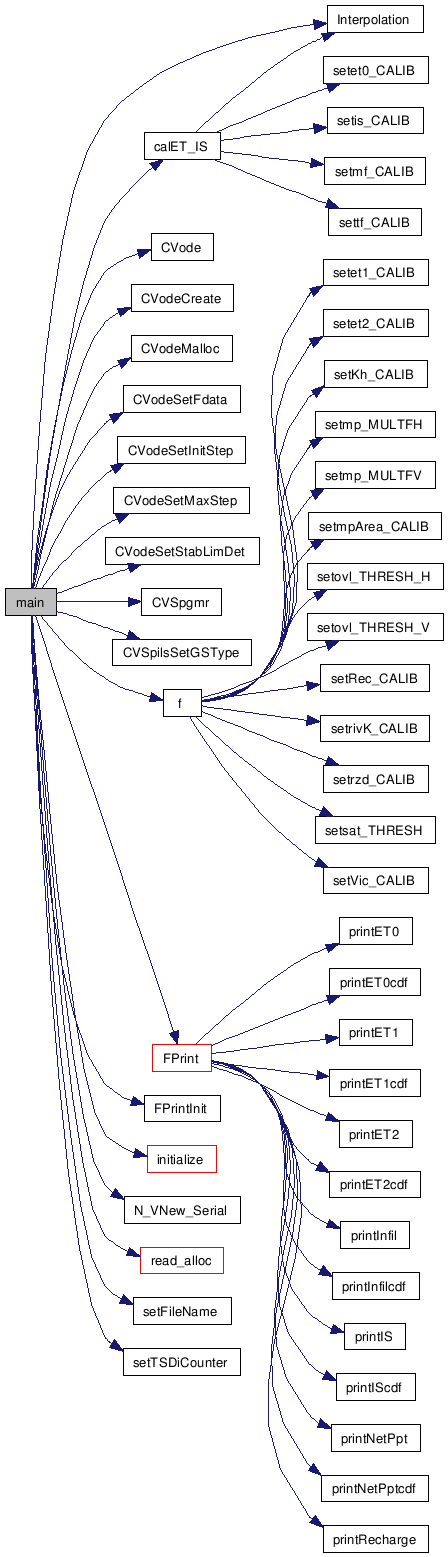

Here is the call graph for this function:
| N_Vector N_VNew_Serial | ( | int | ) |
| void read_alloc | ( | char * | filename, | |
| Model_Data | DS, | |||
| Control_Data * | CS | |||
| ) |
Function reads all the input files and initializes members of Model and Control Data Structure.
| filename | is Identifier of input files | |
| DS | is pointer to model data structure | |
| CS | is pointer to control data structure |
< Enum value TVal1.
Definition at line 44 of file read_alloc.c.
References albedo_CALIB, soils_type::Alpha, alpha_CALIB, soils_type::base, element_type::BC, soils_type::Beta, model_data_structure::Ele, model_data_structure::Ele_IC, element_type::G, soils_type::gama, element_type::humidity, element_type::index, nodes_type::index, soils_type::index, TSD_type::index, soils_type::Inf, element_IC_type::interception, soils_type::Ksat, lai_CALIB, element_type::LC, TSD_type::length, soils_type::Macropore, element_type::nabr, TSD_type::name, model_data_structure::Node, element_type::node, model_data_structure::NumEle, model_data_structure::NumInc, model_data_structure::NumNode, model_data_structure::NumSoil, element_type::prep, element_type::pressure, rivCoeff_CALIB, rivDepth_CALIB, element_type::Rn, roughEle_CALIB, roughRiv_CALIB, soils_type::RzD, element_IC_type::sat, set_MP, setalbedo_CALIB(), setalpha_CALIB(), setlai_CALIB(), setrivCoeff_CALIB(), setrivDepth_CALIB(), setroughEle_CALIB(), setroughRiv_CALIB(), setset_MP(), setvegfrac_CALIB(), soils_type::Sf, soils_type::SitaR, soils_type::SitaS, element_IC_type::snow, element_type::soil, model_data_structure::Soil, element_type::source, element_IC_type::surf, element_type::temp, TSD_type::TS, model_data_structure::TSD_Inc, element_IC_type::unsat, vegfrac_CALIB, element_type::WindVel, nodes_type::x, nodes_type::y, nodes_type::zmax, and nodes_type::zmin.
Referenced by main().

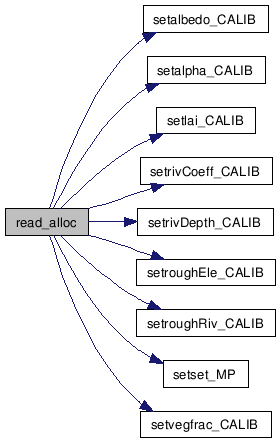

Here is the call graph for this function:
| void setTSDiCounter | ( | Model_Data | mData, | |
| realtype | t | |||
| ) |
Function sets the marker of all the time series according to given time t.
| mData | is pointer to model data structure | |
| t | is time of simulation |
Definition at line 390 of file pihm.c.
References TSD_type::iCounter, TSD_type::length, model_data_structure::NumPrep, TSD_type::TS, and model_data_structure::TSD_Prep.
Referenced by main().
